DIY Foam Mountain Diorama: Illustrated Step-by-Step
This guide uses a friendly, animated style to show how a block of insulation foam becomes a realistic mountain landscape.
Step 1: Stacking and Gluing the Foundation
The project begins with the raw materials. We are using multiple layers of 5cm pale green XPS hobby foam. These layers establish the maximum height and bulk of the mountain. To bond them into a single solid block, apply a generous amount of construction adhesive (or PVA glue) between each layer. Tip: Weigh down the stack while it dries to ensure a strong, gap-free bond.
Panels 1-6: From Glue to Black Basecoat
Panel 1: Stack & Glue Layers. We start with the raw pale green XPS foam. A craft hand applies adhesive, preparing the stack.Panel 2: Draw Mountain Outline. Once dry, the shape of the mountain range is sketched directly onto the side of the foam block using a marker.Panel 3: Cut Stair-Step Profile. A hot wire cutter or craft knife set is used to make the initial, aggressive cuts, following the outline and creating a rough, terraced profile.Panel 4: Rough Carve Slopes. The sharp, stepped edges are now refined. A hobby sander and a rasp (or Surform tool) are used to hack away the corners, defining the basic geometry of the slopes.Panel 5: Detail Rock Strata. This is the sculpting phase. Using the knife tip and a needle tool, the artist scribes fine horizontal lines, cracks, and small, irregular dents to simulate natural rock layers.Panel 6: Base-Coat Black. The carving is complete. To prepare the surface for painting and seal the foam, the entire structure is painted with a thorough black primer coat.
Phase 2: Painting and Detailing
Now that the structure is built and primed black, we move on to adding color and life.
Panels 7-9: Dry-Brushing and Flocking
Panel 7: Heavy Dry-Brush: Greys. This technique creates instant rock texture. Load a wide, flat brush with a small amount of light grey paint, wiping most of it off on a towel (dry-brushing). Lightly sweep the brush across the raised edges of the black terrain. The paint catches the high points, leaving the deep recesses dark. Build up the highlights using lighter greys and a touch of brown.Panel 8: Apply Glue for Vegetation. Using the base rock colors established in Panel 7, it’s time for scenery. Apply dabs of PVA glue wherever you want moss or grass to grow—typically in crevices, flat ledges, and sheltered valleys.Panel 9: Add Static Grass & Moss. While the glue is wet, sprinkle on your static grass and apply clump foliage (fake moss) using tweezers. Tip: A simple static grass applicator helps the fibers stand up realistically.
Phase 3: The Final Presentation
The scenery is complete. The final step is integrating the mountain into a display base and taking a beauty shot.

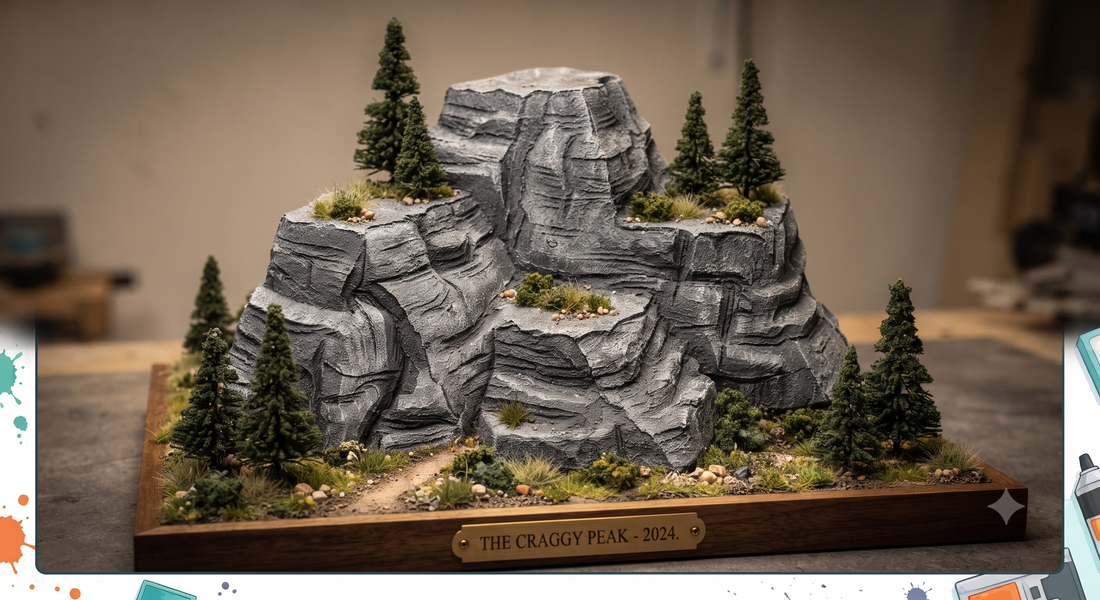

Final Beauty Shot: The Craggy Peak
Here is the completed diorama, "The Craggy Peak." The multi-step dry-brushing process (Panel 7) has created deep, realistic rock definition, and the strategic placement of static grass and moss (Panel 9) brings the miniature landscape to life. The pale green foam is completely hidden beneath layers of paint and scenery. This final presentation uses a simple wooden base with a neat dirt path and miniature pine trees to establish a sense of scale.
I hope you enjoyed this illustrated build! Happy crafting.
